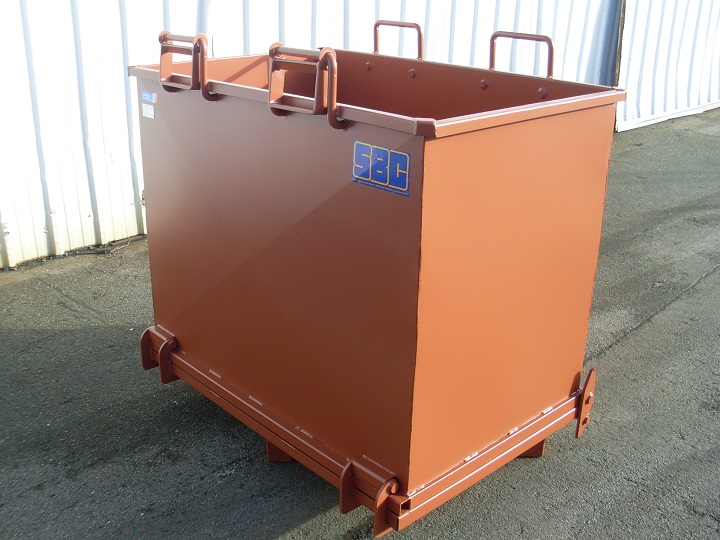

Description

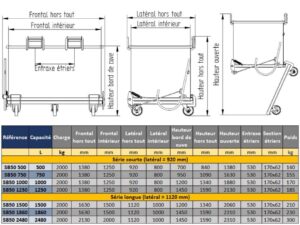

Capacity 500 to 2480 liters – Loads up to 2000 kgQualities
- Cubic hopper, minimum space requirement, maximum capacity.

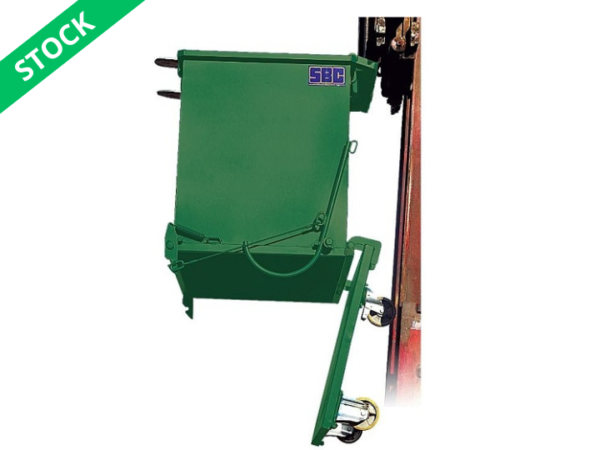

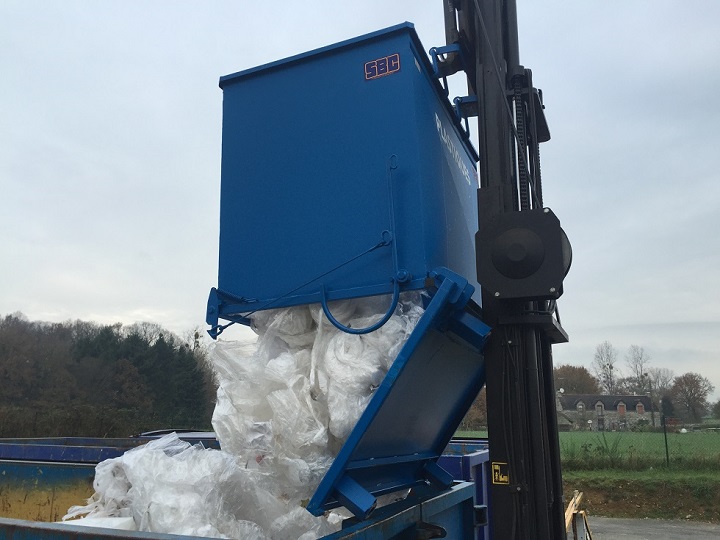

- Grips from the top, empties from the bottom.
- Locking of both fork arms to the tipper (anti-slip clamp).
- Two triggers as standard :
- automatic by contact.
- by manual lever.
- Off-set hinge facilitates closing of bottom on floor.
- Removable feet as standard.
- Maintenance-free equipment.
Features
- Mechanically welded tank with thick bottom.
3 mm thick, reinforced with field plates. - Sides reinforced by diamond-point bending.
- Hinged bottom on 4 thick hinges.
8 mm thick. - Continuous, reinforced outer weld at inner corners.
- Bowl edges reinforced by double folding.
- Double locking hook on Ø 23 mm pin.
- The SB50 volume 2480L is equipped with a 50° opening limiter.

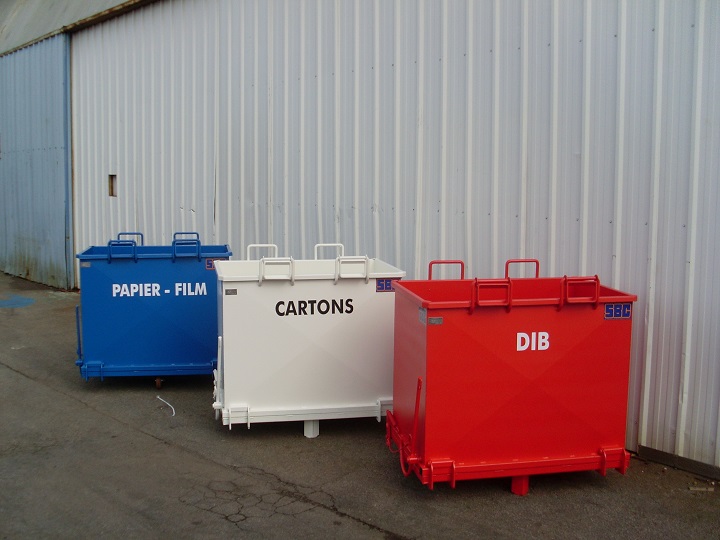

- Paint finish: choice of 10 shades.
Options

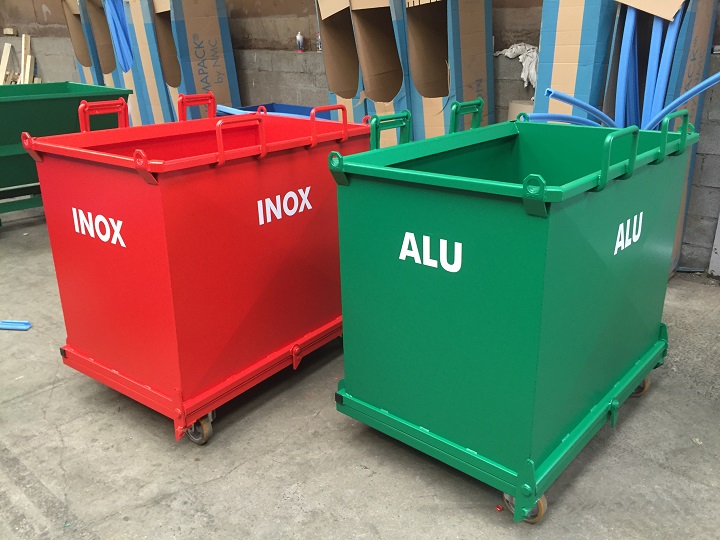

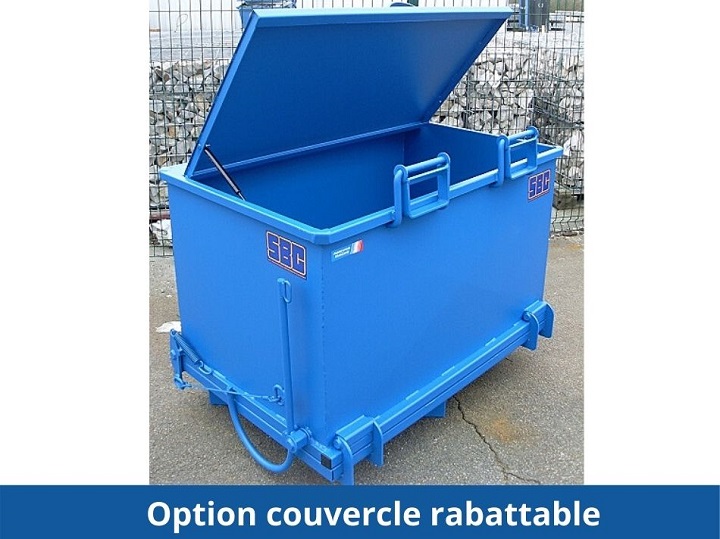

- Wheels, lifting lugs, special grips, markings, hinged lid, lid with ferrule, fill level, bottom opening limiter, gripper cart sockets, hot-dip galvanized, stainless steel.
- For other specific requirements, please contact us.
Click here to see a video of our hopper with opening bottom.
* Tippers in stock for the following volumes: 750L | 1000L (limited stock, contact us for any request!)
